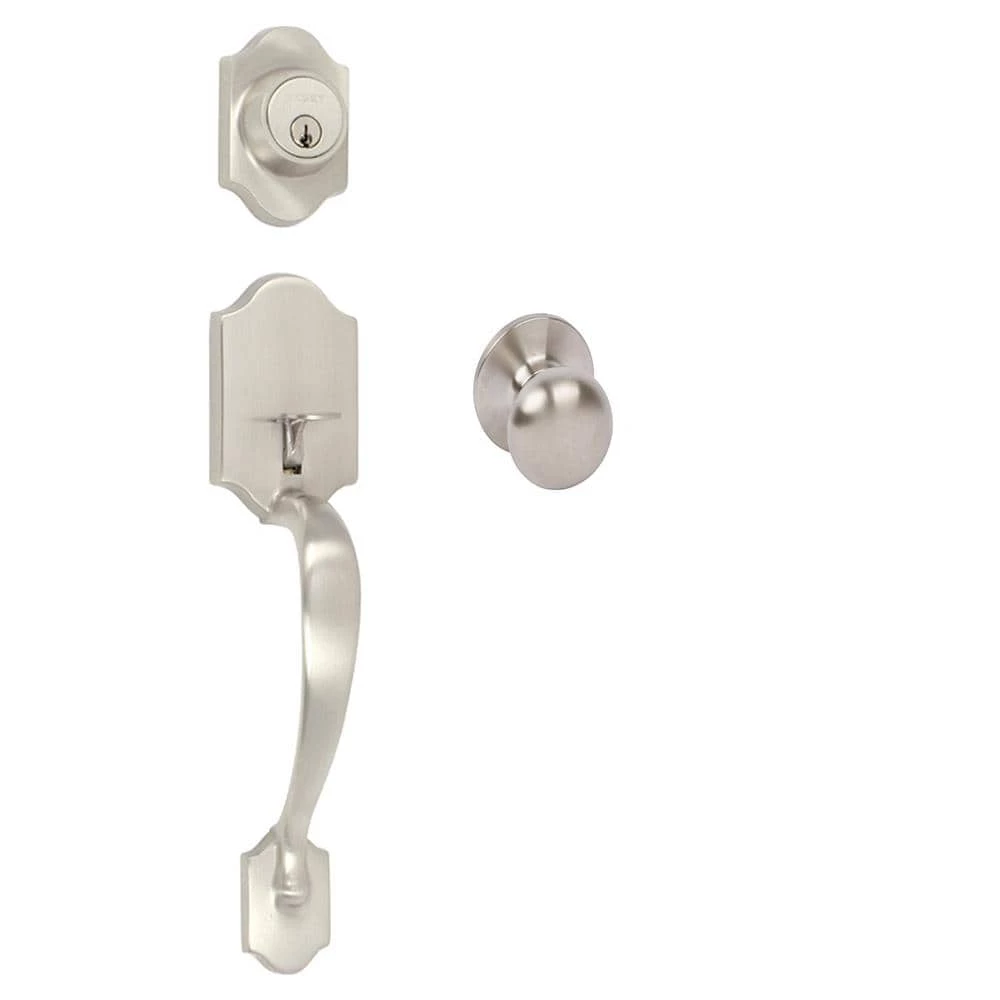

DELANEY HARDWARE Wicklow Satin Nickel Single Cylinder Deadbolt Entry Door Handleset
Original price was: $96.82.$68.74Current price is: $68.74.
- Quality Meets Affordability
- Safe and Secure Shopping
- Safe and Secure Payments, Always
- Safe Payments for a Better Shopping Experience

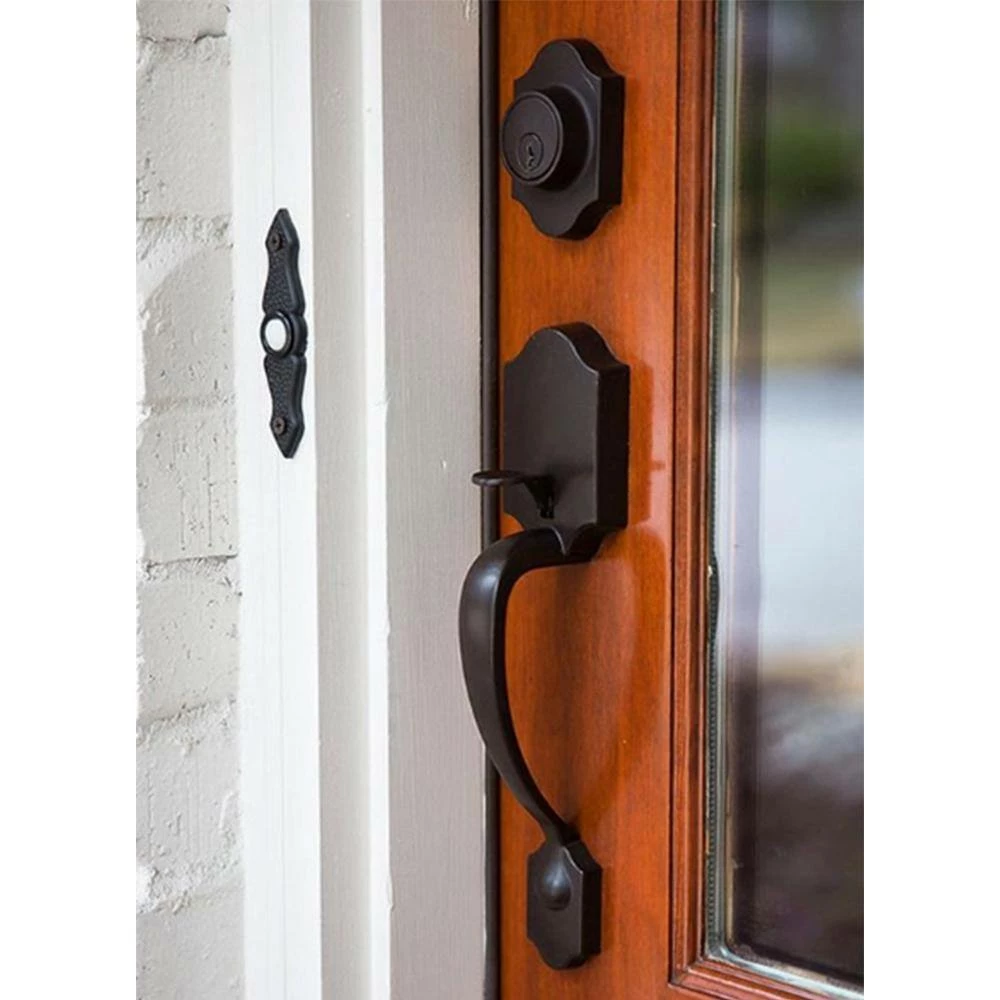

Traditional style sating nickel entry door handle set. The Delaney Wicklow style lock combines traditional curves with modern age finishes and quality for a look that complements a wide range of home styles. The upper trim is a single cylinder deadbolt which can be locked or unlocked with a key on the outside or with the thumb turn on the inside. Meets egress codes. The inside lower trim is a matching satin nickel finish universal round knob that works on right hand or left hand swing doors. Split trim design accommodates installations for either new construction or replacement/remodeling.
- Universal installation feature with adjustable latch to fit all standard door preparations
- Fits both left hand and right hand doors eliminating the need to determine swing of door
- Easy installation requiring only a screwdriver
- All parts and instructions included
- Limited lifetime mechanical warranty
- Design accommodates door thickness from 1-3/8 in. to 1 3/4 in
- Split trim design accommodates installations for either new construction or replacement/remodeling
| Application Type | Entry |
|---|---|
| Knob/lever housing height (in.) | 2.5625 |
| Deadbolt Cross Bore Diameter (in.) | 2.125 in |
| Deadbolt Strike Height (in.) | 2.25 in |
| Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 1 in |
| Handle grip length (in.) | 8.41 |
| Inside top plate length (in.) | 2.5 |
| Inside top plate width (in.) | 2.5 |
| Knob Diameter (in.) | 2.25 in |
| Knob/lever bore hole diameter (in.) | 1 |
| Knob/lever cross bore diameter (in.) | 2.125 |
| Knob/lever housing width (in.) | 2 |
| Backset Size (in.) | Adjustable |
| Knob/lever strike height (in.) | 2.25 |
| Knob/lever strike width (in.) | 1.75 |
| Knob/lever throw length (in.) | .5 |
| Maximum Door Thickness (in.) | 1.75 |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 11.5625 |
| Outside bottom handle plate width (in.) | 1.5625 |
| Outside key plate length (in.) | 2.5 |
| Outside key plate width (in.) | 2.5 |
| Outside top handle plate length (in.) | 2.5 |
| Outside top handle plate width (in.) | 2.5 |
| Deadbolt Bore Hole Diameter (in.) | 2.13 in |
| Assembled Width (in.) | 2-5/8 in |
| Commercial/Residential | Residential |
| Included | Drilling Template,Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Round corner |
| Door Handing | Universal |
| Door Lock Style | Classic |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Mechanical |
| Features | Adjustable Backset,Easy Installation |
| Finish | Satin Nickel |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Nickel |
| Hardware Finish Family | Nickel |
| Keying Type | Keyed Alike |
| Assembled Height (in.) | 11-9/16 in |
| Knob style | Flat ball |
| Knob/lever strike | Full round |
| Lock Type | Keyed |
| Material | Zinc |
| Product Weight (lb.) | 2 lb |
| Returnable | 90-Day |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Total Number of Keys Included | 2 |
| Certifications and Listings | ANSI Compliant |
| Manufacturer Warranty | Limited Lifetime Mechanical Warranty |
| Assembled Depth (in.) | 3 in |
| Projection (in.) | 2.14 |
