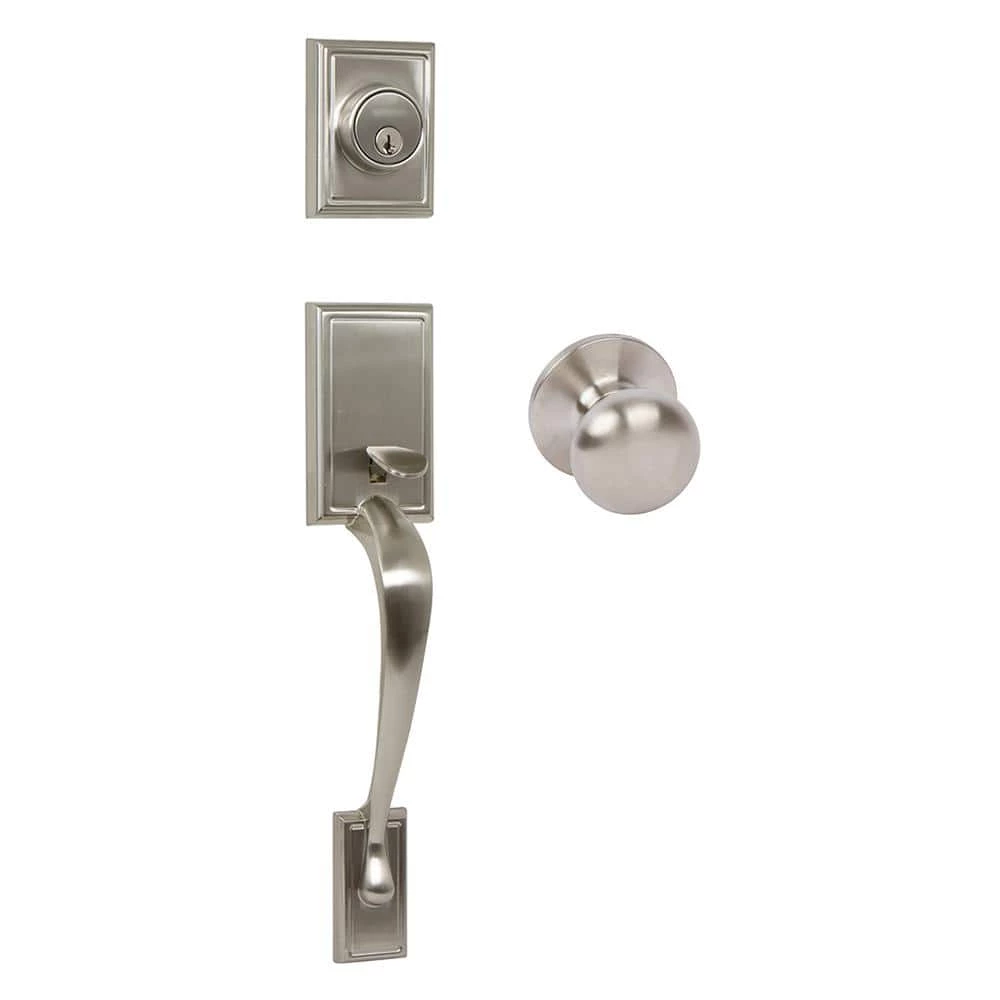

DELANEY HARDWARE Kellington Satin Nickel Single Cylinder Deadbolt Entry Door Handleset

DELANEY HARDWARE Kellington Satin Nickel Single Cylinder Deadbolt Entry Door Handleset - Image 2

DELANEY HARDWARE Kellington Satin Nickel Single Cylinder Deadbolt Entry Door Handleset

Original price was: $102.28.Current price is: $66.48.

SKU: DELANEY HARDWARE 311638076 Categories: Door Hardware, Entry Door Handlesets, Knob Handlesets Tags: DELANEY HARDWARE, Keyed, Keyed Handlesets, Mechanical, Nickel

Quality Meets Affordability
Safe and Secure Shopping
Safe and Secure Payments, Always
Safe Payments for a Better Shopping Experience

Traditional, classic and modern. The Delaney Kellington satin nickel square design entry door handle set combines traditional clean lines with precision curved bevels for a truly rich, high quality look. A broad range of finishes complement traditional, classic and modern homes. The upper trim is a single cylinder deadbolt which can be locked or unlocked with a key on the outside or with the thumb turn on the inside. Meets egress codes. The inside lower trim is a matching satin nickel finish universal round knob that works on right hand or left hand swing doors. Split trim design accommodates installations for either new construction or replacement/remodeling.

Universal installation feature with adjustable latch to fit all standard door preparations
Fits both left hand and right hand doors eliminating the need to determine swing of door
Easy installation requiring only a screwdriver
All parts and instructions included
Limited lifetime mechanical warranty
Design accommodates door thickness from 1-3/8 in. to 1 3/4 in
Split trim design accommodates installations for either new construction or replacement/remodeling

Application Type	Entry
Knob/lever housing height (in.)	2.5625
Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.25 in
Deadbolt Strike Width (in.)	1 in
Deadbolt Throw Length (in.)	1 in
Deadbolt Trim Ring Diameter (in.)	1 in
Handle grip length (in.)	8.41
Inside top plate length (in.)	2.5
Inside top plate width (in.)	2.5
Knob Diameter (in.)	2.25 in
Knob/lever bore hole diameter (in.)	1
Knob/lever cross bore diameter (in.)	2.125
Knob/lever housing width (in.)	2
Backset Size (in.)	Adjustable
Knob/lever strike height (in.)	2.25
Knob/lever strike width (in.)	1.75
Knob/lever throw length (in.)	.5
Maximum Door Thickness (in.)	1.75
Minimum Door Thickness (in.)	1.375
Outside bottom handle plate length (in.)	11.5625
Outside bottom handle plate width (in.)	1.5625
Outside key plate length (in.)	2.5
Outside key plate width (in.)	2.5
Outside top handle plate length (in.)	2.5
Outside top handle plate width (in.)	2.5
Deadbolt Bore Hole Diameter (in.)	2.13 in
Assembled Width (in.)	2-5/8 in
Commercial/Residential	Residential
Included	Drilling Template,Hardware,Installation Instructions,Mounting Hardware,Self Guiding Screws
Deadbolt Type	Single Cylinder Deadbolt
Deadbolt strike	Round corner
Door Handing	Universal
Door Lock Style	Classic
Door Locks & Knobs Product Type	Keyed Handlesets
Electronic/Mechanical	Mechanical
Features	Adjustable Backset,Easy Installation
Finish	Satin Nickel
Handleset Product Type	2 Piece Front & Back
Hardware Color Family	Nickel
Hardware Finish Family	Nickel
Keying Type	Keyed Alike
Assembled Height (in.)	11-9/16 in
Knob style	Flat ball
Knob/lever strike	Full round
Lock Type	Keyed
Material	Zinc
Product Weight (lb.)	2 lb
Returnable	90-Day
Security/ANSI Grade	ANSI Grade 3 (Good)
Total Number of Keys Included	2
Certifications and Listings	ANSI Compliant
Manufacturer Warranty	Limited Lifetime Mechanical Warranty
Assembled Depth (in.)	3 in
Projection (in.)	2.14
