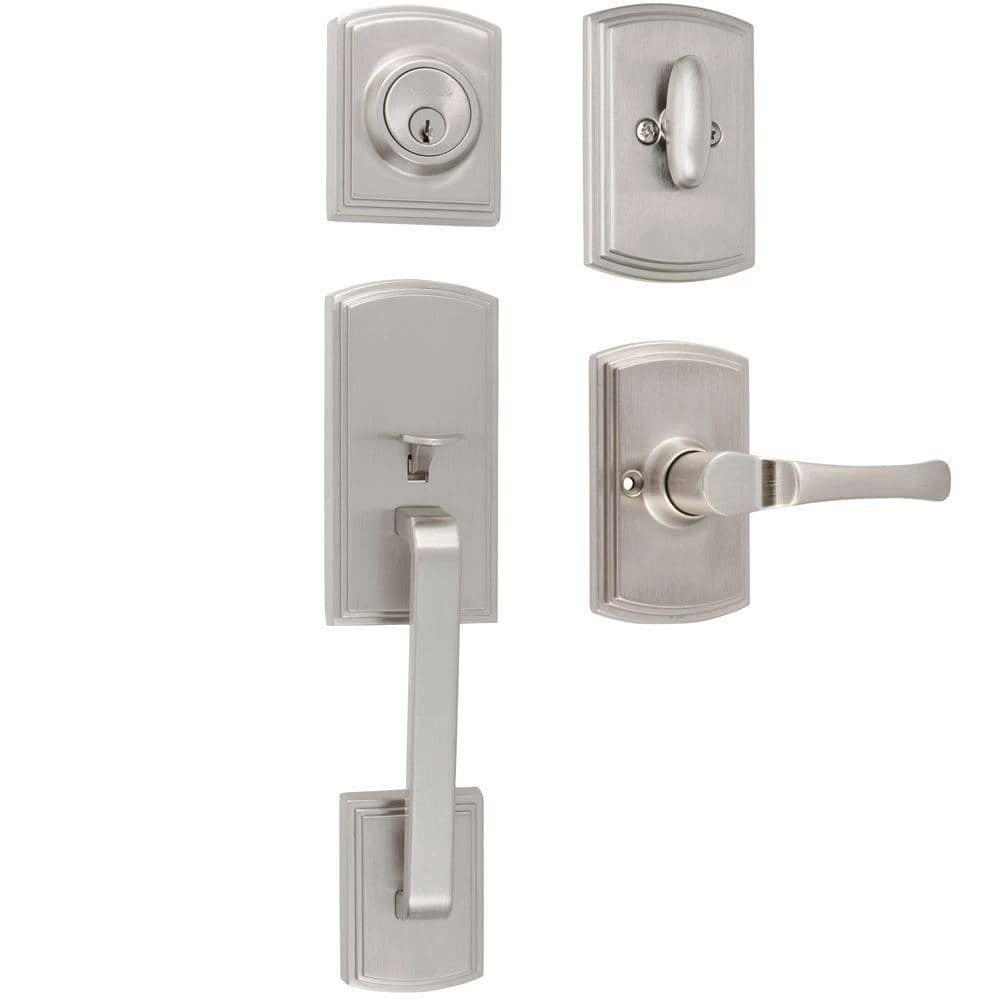

DELANEY HARDWARE Italian Collection Visconti Single Cylinder Satin Nickel Door Handleset with Artino Interior

Original price was: $126.48.Current price is: $86.01.

SKU: DELANEY HARDWARE 203883292 Categories: Door Hardware, Entry Door Handlesets, Lever Handlesets Tags: Classic, DELANEY HARDWARE, Metal, Round corner, SC1

Quality Meets Affordability
Safe and Secure Shopping
Safe and Secure Payments, Always
Safe Payments for a Better Shopping Experience

The Delaney Designer Series Italian Collection was inspired by the simple elegance of Venice and the timeless appearance found in Tuscany. The Visconti entrance handleset with exquisite straight lines and enlarged back plate adds style and value to any home. The satin nickel finish complements a wide selection of interior design options. The upper trim is a single cylinder deadbolt which is operated with a key on the outside and a thumb turn on the inside. The lower trim is an Artino lever for either a left hand door (LH) or right hand (RH) door. Handing is determined by standing on the outside of the door noting on which side the hinges are located hinges on the right side is a RH door, hinges on the left side is a LH door.

Universal installation feature with adjustable latch and interlocking guides make it easy to install requiring only a screwdriver
All parts and installation instructions included
Reinforced spring assembly provides long lasting smooth operation
Internal protective collar provides added security
Fits on both wood and metal doors 1 3/8 in. – 1 ¾ in. thick
Single cylinder deadbolt with a thumb turn on the inside
All products with a key on the same order will be keyed alike

Application Type	Entry
Knob/lever housing height (in.)	3
Deadbolt Bore Hole Diameter (in.)	1 in
Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.25 in
Deadbolt Strike Width (in.)	1 in
Deadbolt Throw Length (in.)	1 in
Deadbolt Trim Ring Diameter (in.)	3 in
Handle grip length (in.)	18.375
Inside top plate length (in.)	3.75
Inside top plate width (in.)	3
Knob/lever bore hole diameter (in.)	1
Knob/lever cross bore diameter (in.)	2.125
Knob/lever housing width (in.)	3
Assembled Width (in.)	3 in
Knob/lever strike height (in.)	2.25
Knob/lever strike width (in.)	1
Knob/lever throw length (in.)	.5
Lever Grip Length (in.)	4 in
Maximum Door Thickness (in.)	1.75 in
Minimum Door Thickness (in.)	1.375
Outside bottom handle plate length (in.)	12.375
Outside bottom handle plate width (in.)	3
Outside key plate length (in.)	3.75
Outside key plate width (in.)	3
Outside top handle plate length (in.)	3.75
Outside top handle plate width (in.)	3
Backset Size (in.)	Adjustable
Assembled Height (in.)	19 in
Commercial/Residential	Residential
Included	Drilling Template,Hardware,Installation Instructions
Deadbolt Type	Single Cylinder Deadbolt
Deadbolt strike	Round corner
Door Handing	Universal
Door Lock Style	Classic
Door Locks & Knobs Product Type	Keyed Handlesets
Electronic/Mechanical	Mechanical
Features	Adjustable Backset,Easy Installation
Finish	Satin Nickel
Handleset Product Type	2 Piece Front & Back
Hardware Color Family	Nickel
Hardware Finish Family	Nickel
Interior/Exterior	Exterior
Assembled Depth (in.)	4 in
Keying Type	Keyed Alike
Keyway	SC1
Knob/lever strike	Round corner
Lever style	Straight
Lock Type	Keyed
Material	Metal
Product Weight (lb.)	8 lb
Returnable	90-Day
Security/ANSI Grade	ANSI Grade 3 (Good)
Total Number of Keys Included	2
Certifications and Listings	ANSI Certified
Manufacturer Warranty	Limited Lifetime Mechanical Warranty
Projection (in.)	4
